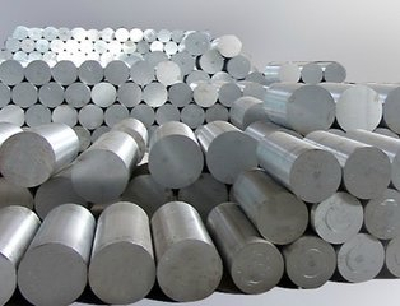

7075-T6 Hot Extruded Aluminum Bars
7000 series aluminum alloy is another kind of commonly used aluminum alloy,it contains zinc and magnesium.The best strength of the common aluminum alloy is 7075 alloy, but it can not be welded, and it has a very poor corrosion resistance.Zinc is the main alloying element of this series of aluminum alloy, and the material can be heat treated to very high strength by adding a little magnesium alloy.This series of materials are generally added a small amount of copper, chromium and other alloys, 7075 aluminum alloy is best,it has the highest strength, suitable for aircraft structure,rocket,propeller,aircraft and high strength parts.
| Type | Alloy Series | Typical Alloy | Temper | Dia(mm) | Standard |
| Small & Medium Rods | 7000 series | 7005,7075 | T6,T651,T7451,H112 | 6~120 | GB/T3191 ASTM |
| Large Size Rods | 7000 series | 7005,7075 | 100~550 |
| 7000 Series Aluminum Rod Chemistry composition | |||||||||||||
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Zr | Other | Al | ||
| Single | Total | ||||||||||||
| 7A04 | 0.5 | 0.5 | 1.4~2.0 | 0.20~0.6 | 1.8~2.8 | 0.10~0.25 | 5.0~7.0 | — | 0.1 | — | 0.05 | 0.1 | Remainder |
| 7A09 | 0.5 | 0.5 | 1.2~2.0 | 0.15 | 2.0~3.0 | 0.16~0.30 | 5.1~6.1 | — | 0.1 | — | 0.05 | 0.1 | Remainder |
| 7005 | 0.35 | 0.4 | 0.1 | 0.20~0.7 | 1.0~1.8 | — | 4.0~5.0 | — | 0.01~0.06 | 0.058~0.20 | 0.05 | 0.15 | Remainder |
| 7020 | 0.35 | 0.4 | 0.2 | 0.05~0.50 | 1.0~1.4 | 0.10~0.35 | 4.0~5.0 | Zr+Ti: 0.08~0.25 | — | 0.08~0.20 | 0.05 | 0.15 | Remainder |
| 7050 | 0.12 | 0.15 | 2.0~2.6 | 0.1 | 1.9~2.6 | 0.04 | 5.7~6.7 | — | 0.06 | 0.08~0.15 | 0.05 | 0.15 | Remainder |
| 7075 | 0.4 | 0.5 | 1.2~2.0 | 0.3 | 2.1~2.9 | 0.18~0.28 | 5.1~6.1 | 0.2 | — | 0.05 | 0.15 | Remainder | |
| 7475 | 0.1 | 0.12 | 1.2~1.9 | 0.06 | 1.9~2.6 | 0.18~0.25 | 5.2~6.2 | — | 0.06 | — | 0.05 | 0.15 | Remainder |
Standard Seaworthy Export Packing For The 7075-T6 Hot Extruded Aluminum Bars.
PVC protective film, woven bags, wooden case etc.
| Container Loading Capacity | |||||
| Type | Length | Width | Height | Volume | Max Weight |
| 20FT GP | 5.8m | 2.13m | 2.18m | 24-26 CBM | 25 MT |
| 40FT GP | 11.8m | 2.13m | 2.18m | 54 CBM | 25 MT |
| 40FT HP | 11.8m | 2.13m | 2.72m | 68 CBM | 26 MT |
Your special requirements of package will be welcomed.
