Product Description

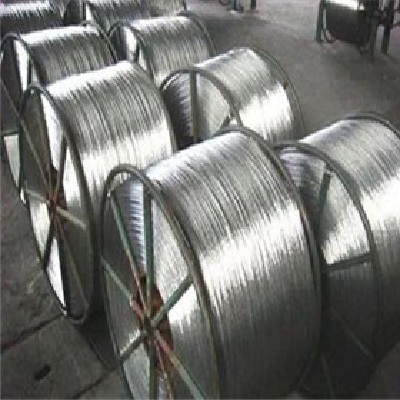

Aluminum alloy wire 5154



Aluminum alloy wire 5 series
1.conductivity: above 36%
2 aluminum grade: 5154
3.tensile strength: 230---400MPA
4.elongation:1--15%

5.  Brand: OEM



Specification:





	Nominal Diameter	Resistivity	Measured Resistance	Density	Conductivity	Annealed		Hard
		20℃	20℃	20℃	20℃	Elongation	Tensile Strength	Elongation	Tensile Strength
AWG	Φ /MM	≤Ω.km/m	≤Ω/km	g/cm	≥%	≥%	≥MPa	≥%	≥MPa
36	0.127	49	3947	2.78	35	8	210	1	330
35	0.143		3113			8		1
34	0.16		2486			8		1
33	0.18		1964			8		1
32	0.202		1560			10		1
31	0.227		1235			10		1
30	0.255		979			10		1
29	0.286		778			10		1
28	0.321		617			12		1
27	0.361		488			12		1
26	0.405		388			12		1
25	0.455		307			12		1
24	0.511		243			12		1
23	0.573		193.8			12		1
22	0.643		153.9			12		1
21	0.723		121.7			12		1
20	0.812		96.5			12		1
19	0.912		76.5			12		1
18	1.024		60.7			12		1
17	1.17		48.1			12		1
16	1.291		38.1			12		1
15	1.45		30.2			12		1
14	1.628		24			12		1
13	1.828		19			12		1
12	2.053		15.1			12		1
11	2.305		12			12		1
10	2.588		9.5			12		1
