Product Details
- Size: 1
- Place of Origin: shandong
- Brand Name: SHENGFALVYE
- Model Number: Aluminum wire on sale
- Weight: 1000.000 kg

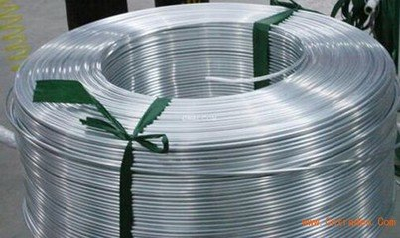

APPLICATION OD OF 9.5 MM ALUMINUM WIRE ROD
Electrical Purposes, Electrical Conductors, Rods and Rivets
DIAMETER TOLERANCE OF 9.5 MM ALUMINUM WIRE ROD
| Specified Diameter in. (mm) | Deviation of Mean Diameter from Specified Diameter Tolerance, in. (mm) |
| 0.375-0.500 (9.52-12.70) | 0.020 (0.51) |
| 0.501-1.000 (12.73-25.40) | 0.025 (0.64) |
CHEMICAL COMPOSITION in % OF 9.5 MM ALUMINUM WIRE ROD
| Si | Fe | Cu | Mn | Cr | Zn | B | Ga | V+Ti | Others | Al(Min.) | |
| Each | Total | ||||||||||
| <0.10 | <0.4 | <0.05 | <0.01 | <0.01 | <0.05 | <0.05 | <0.03 | <0.02 | <0.03 | <0.10 | >99.50 |
TENSILE STRENGTH LIMITS OF 9.5 MM ALUMINUM WIRE ROD
| Temper | KSI | Mpa | Resistivity Ω.mm2/m, max | Conductivity %IACS, min |
| 1350-O | 8.5-14.0 | 59-97 | 0.027899 | 61.8 |
| 1350-H12 and -H22 | 12.0-17.0 | 83-117 | 0.028035 | 61.5 |
| 1350-H12 and -H22 | 15.0-20.0 | 103-138 | 0.028080 | 61.4 |
| 1350-H12 and -H22 | 17.0-22.0 | 117-152 | 0.028126 | 61.3 |
